How the amazing Neutrik Silent connectors work
The Neutrik 'Silent' plug automatically mutes (shorts) an instrument cable,
typically a guitar, to avoid pops and squeals when changing the instrument

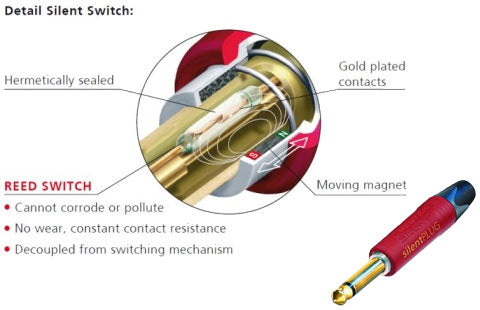

under load. The integrated gold contact reed switch is activated by a
spring-loaded magnetic sleeve that un-shorts the contacts only when the jack
is fully mated. The switch is hermetically sealed, and is rated for at least
10,000 mating cycles. "The lifetime plug" Diecast shell, Neutrik unique chuck-type strain relief
with PU-sleeve for optimal cable protection.
TECHNICAL DATA
Electrical
Rated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance - initial: > 2 G
- after damp heat test: = 1 G
Dielectric strength: 1 kV dc (NP2C-AU-SILENT: 250Vdc)
Mechanical
Wiring: solder terminals
Wire size: 1 mm² / AWG 18
Cable O.D.: 4 - 7 mm
Solderability: complies with IEC 68-2-20
Materials
Shell ZnAl4Cu1, Ni or black Cr plated
- NP2C-AU-Silent: only red plated
- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 µm Ni (Su) or gold plated
Chuck: POM
Bushing: POM + PU
Temperature range: -20 deg C to +65 deg C
| |
| | |
|
|
|
